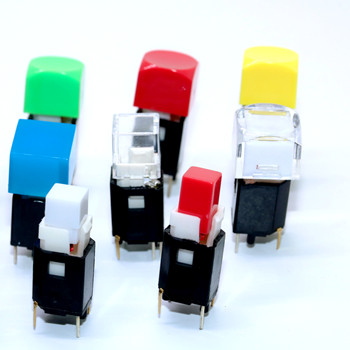

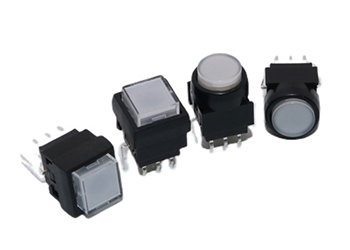

3010 Series Push Button Switch

Clip-on contacts ensure higher reliability. Terminals are all COM-pitched (multiples of 2.54 mm). Specific terminal shapes ensure a tight fit during soldering. Solder ingress protection: terminals are completely sealed with epoxy resin. A variety of

PDF Download

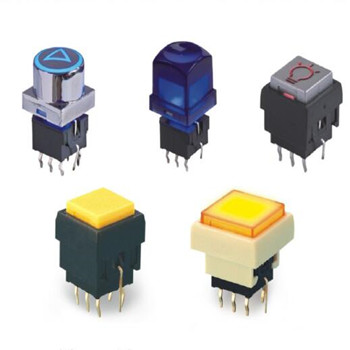

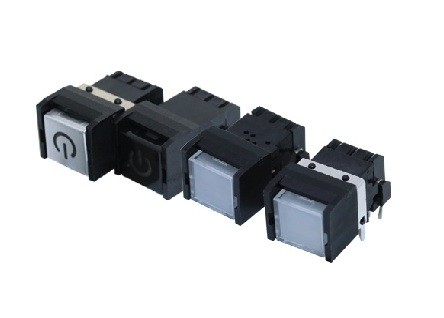

C309 Series right angle push button Switch

Clip-on contacts ensure higher reliability. Terminals are all COM-pitched (multiples of 2.54 mm). Specific terminal shapes ensure a tight fit during soldering. Solder ingress protection: terminals are completely sealed with epoxy resin. A variety of

PDF Download

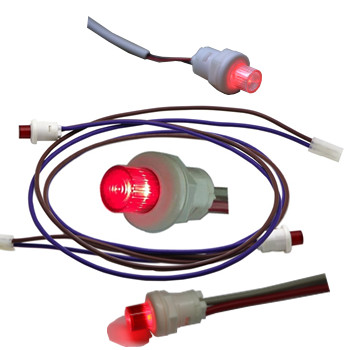

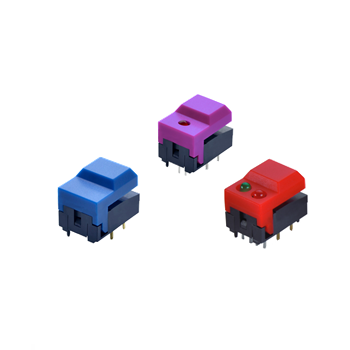

C3002A series single and double speed push button switch with led

It can be used for medical devices, and the materials meet the medical industry standards. Electrical parameters: 10mA ~ 100mA, 2V DC ~ 30V DC Service life: 50000 cycles service environment: - 40 ° C to 85 ° C

PDF Download

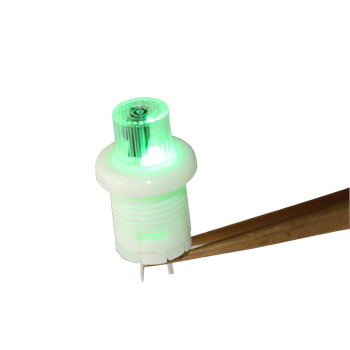

C4001 Infrared receiver LED indicator

LED indicator with infrared receiver INDICATOR TYPE Operating Temperature:-20℃ to 80℃ Operating VOLTAGE:2.7V-5.5V WELDING TEMPERATURE:260℃ MAX INPUT FREUENCY:38 kHz

PDF Download

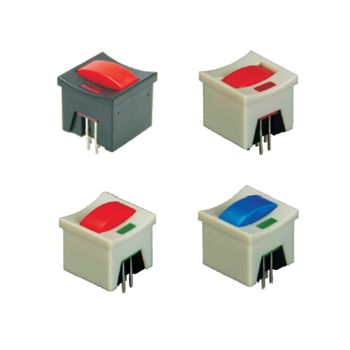

C1204 SERIES led push button switch

Self locking or reset key switch Multiple choice led selectable C1204 panel can be installed with PCB welding Provide customized pattern customization

PDF Download

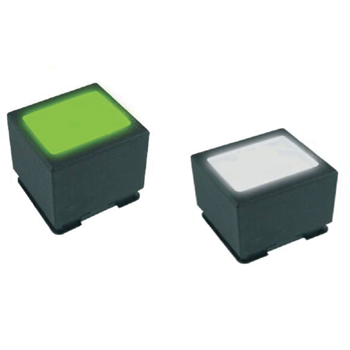

CS009 Key switch with screen display

Zhaohua CS009 series combines LCD display screen with button or rocker switch. Through programming of display information and control logic, customers can simply realize product personalization, multi-functional configuration and save space.

PDF Download

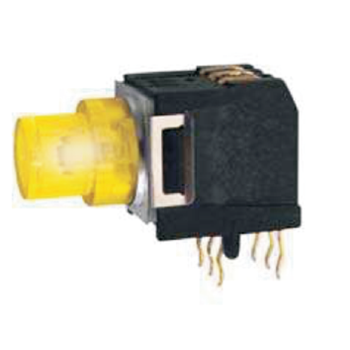

C3006A SERIES right angle led push button switch

C3006a series is often used on the control panel of audio-visual multimedia. It uses a variety of light color changes and multi-style caps to make the whole panel have different button appearances, but all use the same switch. Moreover, due to its se

PDF Download

C3010 SERIES led push button switch

Feature : • Precise design terminal type adequate for DIP IC pitch size (multiple of 2.54mm). • Epoxy sealing treatment, free of flux entry. • Several LED colors options. • Side-actuated with right angle terminal. Applications : • Operating swi

PDF Download

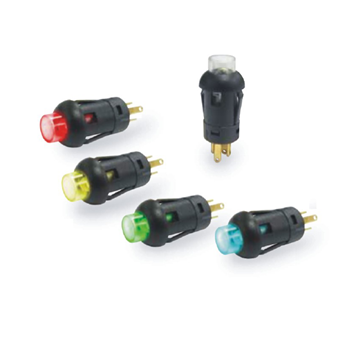

C3013 SERIES led push button switch

CHAU-HUA C3013 series illuminated switches are available with multiple illumination color options with a momentary pushbutton function. The distinctive features are small size, long electrical life and high brightness LED. Button surface are illumin

PDF Download

C3013A SERIES led push button switch

Dailywell PBL series illuminated switches are available with multiple illumination color options with a momentary pushbutton function. The distinctive features are small size, long electrical life and high brightness LED. Button surface are illumina

PDF Download

C3011A SERIES silent led push button switch

Mute and smooth button switch with light, long mechanical life, monochrome and two-color full-color lamp color selection, which can be used for common operation buttons such as broadcast guide equipment, professional video and audio equipment, matrix

PDF Download

C3006 SERIES led push button switch

A variety of button colors can be selected, including conventional red, green, blue, yellow and white, customized cap color, protection grade 94v-2, anti-corrosion and pressure resistance, silver plated and gold-plated contact design, customized silk

PDF Download
