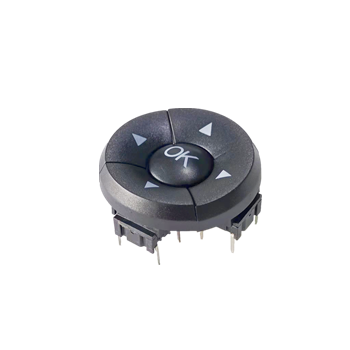

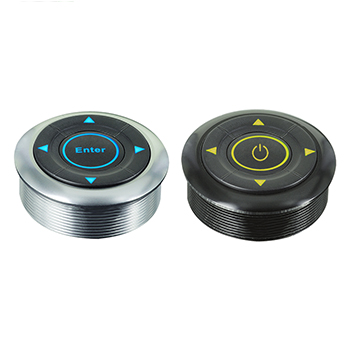

CHA C5T39WF series 5 way navigation switch

The panel is IP65 dust-proof and waterproof; Five led colors of red, green, blue, yellow and white, five LEDs, common anode;5 pcs independent tact switches, collinear

PDF Download

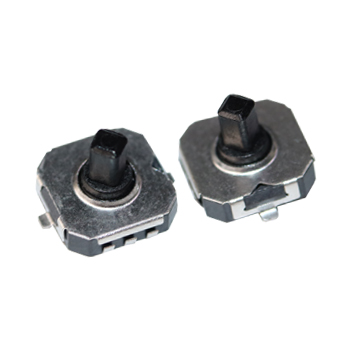

CDF-01 series micro 5 way navigation switch

Rating:12 VDC 50mA Contact Resistance:100 mΩ max INITIAL Operating Temperature:-20℃ to 70℃

PDF Download

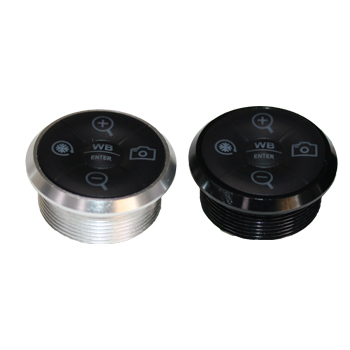

C5T25WF waterproof five way navigation tact switch with led

Waterproof five way key switch, 25mm in diameter, with light, black and white. It is mainly used in cameras and cameras.

PDF Download

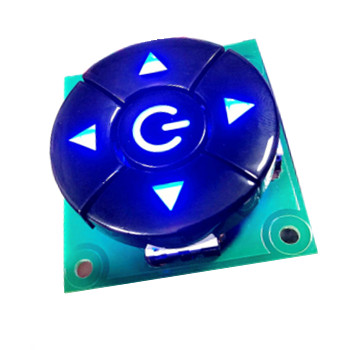

C5T07 SERIES waterproof five way navigation tact switch

The 5-button switch module with light navigation, LED backlight indication, surface mounting aperture of 32 mm, ultra-thin design, total thickness of 12.2 mm, simple and fast installation with connector wiring at the back, and the button switch is de

PDF Download

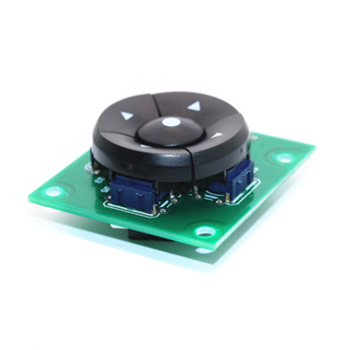

C5T06 SERIES waterproof five way navigation tact switch

Navigation 5-button switch module with light, LED backlight indication, surface mounting aperture of 40mm, ultra-thin design, total thickness of 12.2mm, dustproof and waterproof, life of 1 million times, surface characters can be customized and light

PDF Download

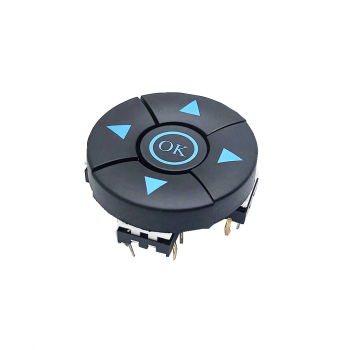

C5T05 SERIES illuminated five way navigation switch

5-button switch module with light navigation, LED backlight indication, surface mounting aperture of 40 mm, ultra-thin design, total thickness of 14.5 mm, connector wiring at the back, simple and fast installation, button switch with "voltage dividin

PDF Download

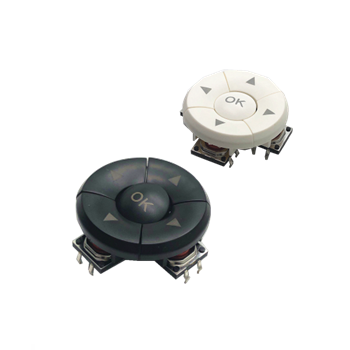

C5T04 SERIES illuminated navigation tact switch

5-button switch module with light navigation, LED backlight indication, surface mounting aperture of 40 mm, ultra-thin design, total thickness of 14.5 mm, connector wiring at the back, simple and fast installation, button switch with "voltage dividin

PDF Download

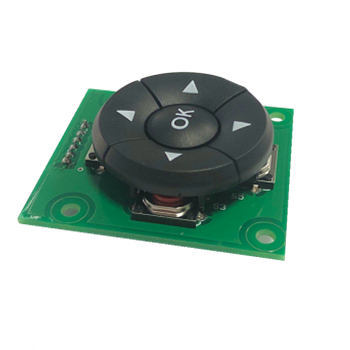

C5T03 SERIES Waterproof navigation switch module

Operating temperature - 20 ℃ to + 70 ℃ Rated current 50mA 12V DC Insulation resistance 100m Ω min.100v DC Dielectric strength 250V AC for 1 min Contact resistance 100m Ω Max Switch stroke 0.25 ± 0.1mm Height 7.3mm Press force 100gf / 160gf /

PDF Download

C5T02 SERIES five way navigation tact switch

Operating temperature - 20 ℃ to + 70 ℃ Rated current 50mA 12V DC Insulation resistance 100m Ω min.100v DC Dielectric strength 250V AC for 1 min Contact resistance 100m Ω Max Switch stroke 0.25 ± 0.1mm Height 7.3mm Press force 100gf / 160gf /

PDF Download
