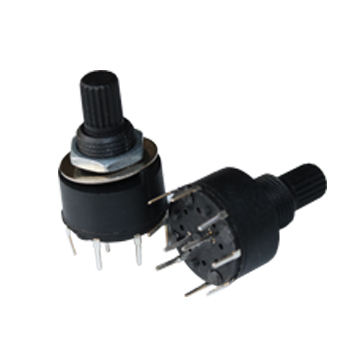

RS17 Gear switch

Rated voltage:DC 16A Maximum poerating current:0.3A Rotational life:10000±cycles per below 100gf.cm Operating Temperature Range:-10℃~+70℃ Rotational torque:10-70N(100-700gf) Insulation resistance 500 V DC 100MΩ MIN Dielectric Strength：500V AC

PDF Download

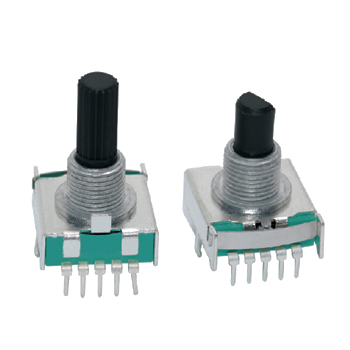

RS16 series Gear switch

SWITCH RATING:DV 30V 0.1A CONTACT RESISTANCE:LESS THAN 30 mΩ

PDF Download
