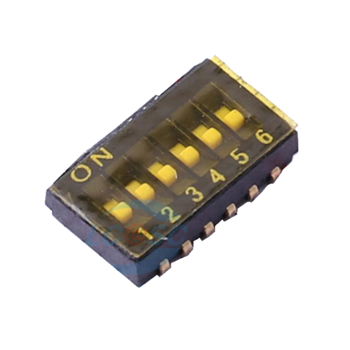

SHPJ Series DIP switch

1.27 dip switch (half pin distance code DIP switch) J-type internal package foot positions 2, 3, 4, 5, 6, 8 and 10, with a total of 7 kinds of 1.27mm distance; Standard gold plated contact; Attach electric high temperature resistant film; High temper

PDF Download

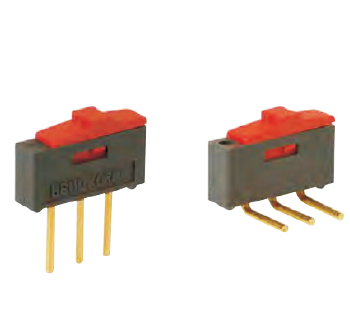

BSI SERIES

Bsi-10 has a pin distance of 2.54mm, DC 12V 0.5A ~ 24V 0.3A. It is applied to all kinds of electronic and electrical products, beauty instruments, etc. with a service life of 2000 times (load).

PDF Download

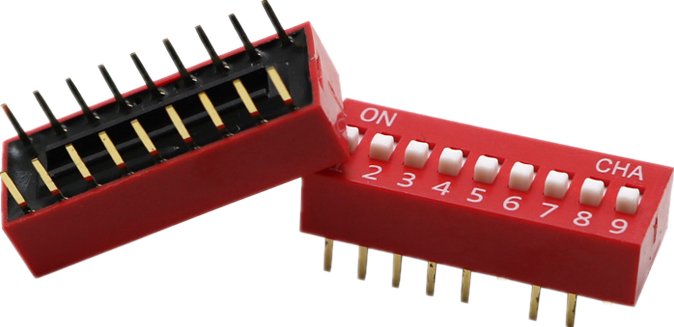

CDM(H) SERIES DIP switch

Rated current: DC 12V 50mA contact resistance: 100M Ω Max insulation resistance: 100M Ω Min operating force: 1000 g life: 1000 cycles product types: 1, 2, 3, 4, 5, 6, 7, 8, 10, 12 bits in total 10 product features: 2.54mm pin distance; Standard gold

PDF Download

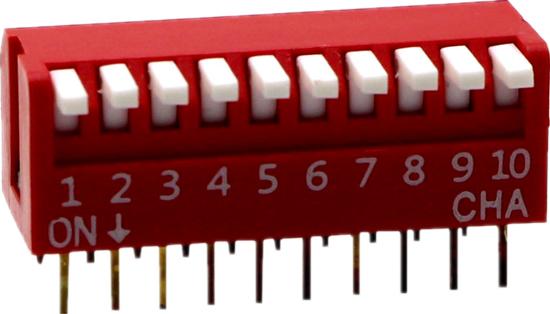

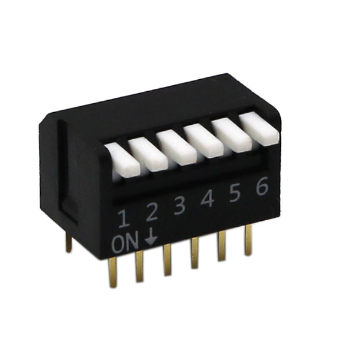

EPM(H) SERIES piano type DIP switch

Rated current: DC 12V 50mA contact resistance: 100M Ω Max insulation resistance: 100M Ω Min operating force: 1000 g life: 1000 cycles product types: 1, 2, 3, 4, 5, 6, 7, 8, 10, 12 bits in total 10 product features: 2.54mm pin distance; Standard gold

PDF Download

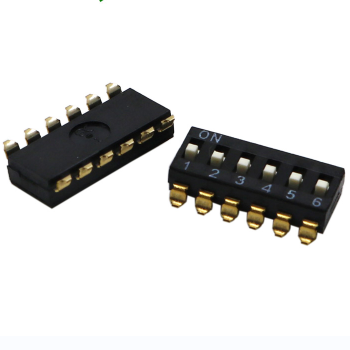

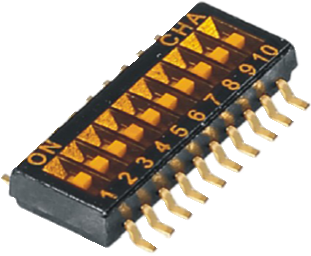

SHP SERIES DIP switch

Rated current: DC 12V 50mA contact resistance: 100M Ω Max insulation resistance: 100M Ω Min operating force: 1000 gram life: 1000 cycles product types: 1, 2, 3, 4, 5, 6, 8 and 10 bits in total 8 product features: 1.27mm pin distance; Standard gold pl

PDF Download
DP(L) SERIES DIP SWITCH

Rated current: switching current 25mA, 24VDC Non switching current 100mA, 50VDC Contact impedance: initial value 50m Ω Product types: 11 kinds in total, ranking 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 and 12

PDF Download

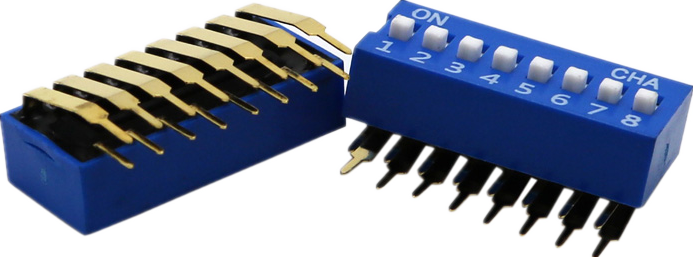

DA SERIES right angle type dip switch

Product types: 11 kinds in total, ranking 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 and 12 Product features: 2.54mm foot distance; Standard gold plated contact; Attach electric high temperature resistant film; High temperature resistant plastic body

PDF Download
DS SERIES slide type dip switch

Product types: 11 kinds in total, ranking 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 and 12 Product features: 2.54mm pin distance; Standard gold plated contact; Attach electric high temperature resistant film; High temperature resistant plastic body

PDF Download
8 records 1/1 pages
