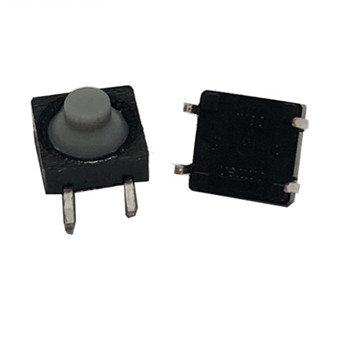

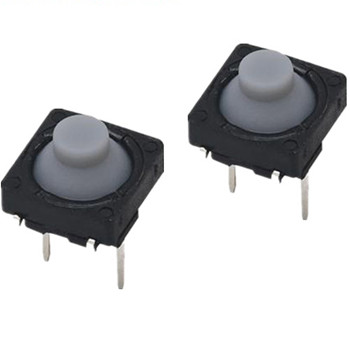

C1201 SERIES

产品尺寸：12*12*7.3/4.3/8.0/8.5mm 作动力：2.55N 动作寿命：1千万次 防尘防水 采用了独有的防尘结构和高可靠金属接点的长寿命型开关。 寿命可达1千万次。

PDF Download

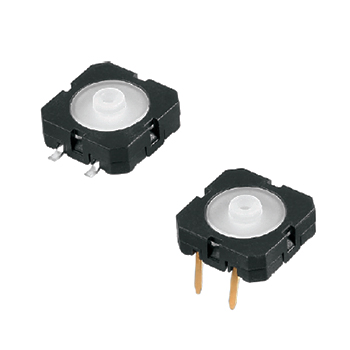

CTR-12 series tact switch

Rating:12VDC 50mA Mechanical life:1,000,000 Cycles /10,0000 cycles Contact Resistance: 100mΩ MAX INITIAL Insulation Resistance:100mΩ 500VAC Dielectric strength:250VAC (50/60Hz) FOR 1MIN

PDF Download

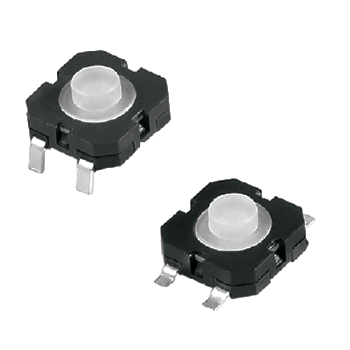

CTR-85 Series tact switch

Rating:12VDC 50mA Mechanical life:1,000,000 Cycles /10,0000 cycles Contact Resistance: 100mΩ MAX INITIAL Insulation Resistance:100mΩ 500VAC Dielectric strength:250VAC (50/60Hz) FOR 1MIN Operating Force:300±100gf / 400±100gf

PDF Download

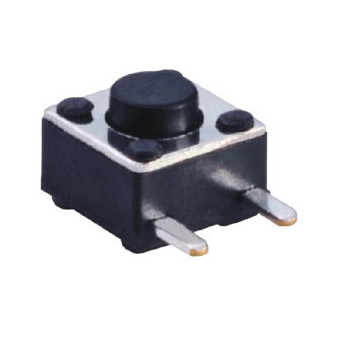

C2506 6*6mm 2 pin tact switch

Rated values:50 mA ,12 V DC Contact Resistance: ≤50mΩ Operating force:100±30 gf Life cycle: 1000,000 cycles

PDF Download

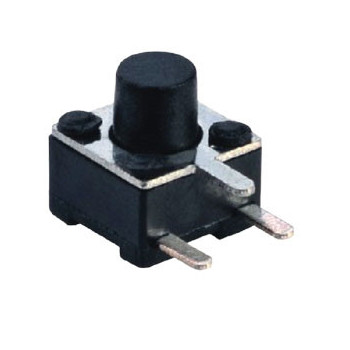

C1199 6*6mm tact switch

6 * 6 SMDTact switch Product Name: SMD silent taact switch Product life: 100000 times Product features: silent Long stroke Operating temperature - 20℃to+70℃

PDF Download

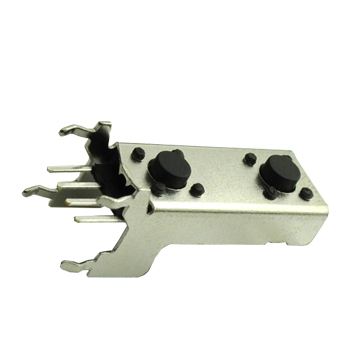

CTSAE-6 series double tact switch

Rating:12VDC 50mA Contact Resistance:100mΩ Max Life test:100,000cycles Operation Force:250±80gf

PDF Download

CTR-65 Series tact switch

Tact switch with a silicone handle. The color of the handle can be white, blue, yellow or customized.

PDF Download

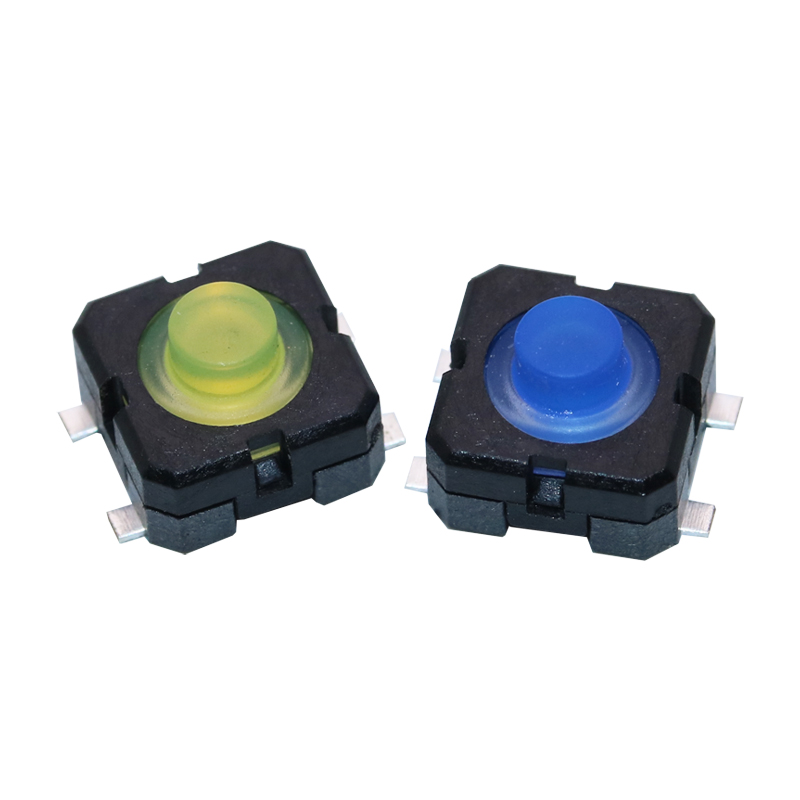

CTR-8G Series Silicone tact switch

Rated current 50mA 12V DC Insulation resistance 100m Ω min.100v DC Dielectric strength 250V AC for 1 min Contact resistance 200m Ω Max Switch stroke 1.5 ± 0.3mm Height 5.5mm Press force 120gf, service life 50000

PDF Download

CTR-8T Series Silicone tact switch

Rated current 50mA 12V DC Insulation resistance 100m Ω min.100v DC Dielectric strength 250V AC for 1 min Contact resistance 200m Ω Max Switch stroke 1.5 ± 0.3mm Height 5.5mm Press force 120gf, service life 50000 times

PDF Download

ZTM-33 Series tact switch

Features: small size Dustproof / anti soldering flux product specification: 3.1 × three point one × 1.5mm product strength: 100gf / 160gf / 260gf Product life: 50000 times

PDF Download

CTSAP-4 Series Side plug three pin led tact switch

Operating temperature - 20 ℃ to + 70 ℃ Rated current 50mA 12V DC Insulation resistance 100m Ω min.100v DC Dielectric strength 250V AC for 1 min Contact resistance 100m Ω Max Switch stroke 0.25 ± 0.1mm Height 3.8/4.3/4.5/5/5.5/6/7mm Force 100g

PDF Download

CTSA-4 Series Right angle tact switch

Operating temperature - 20 ℃ to + 70 ℃ Rated current 50mA 12V DC Insulation resistance 100m Ω min.100v DC Dielectric strength 250V AC for 1 min Contact resistance 100m Ω Max Switch stroke 0.25 ± 0.1mm Height 3.8/4.3/4.5/5/5.5/6/7mm Force 100g

PDF Download
