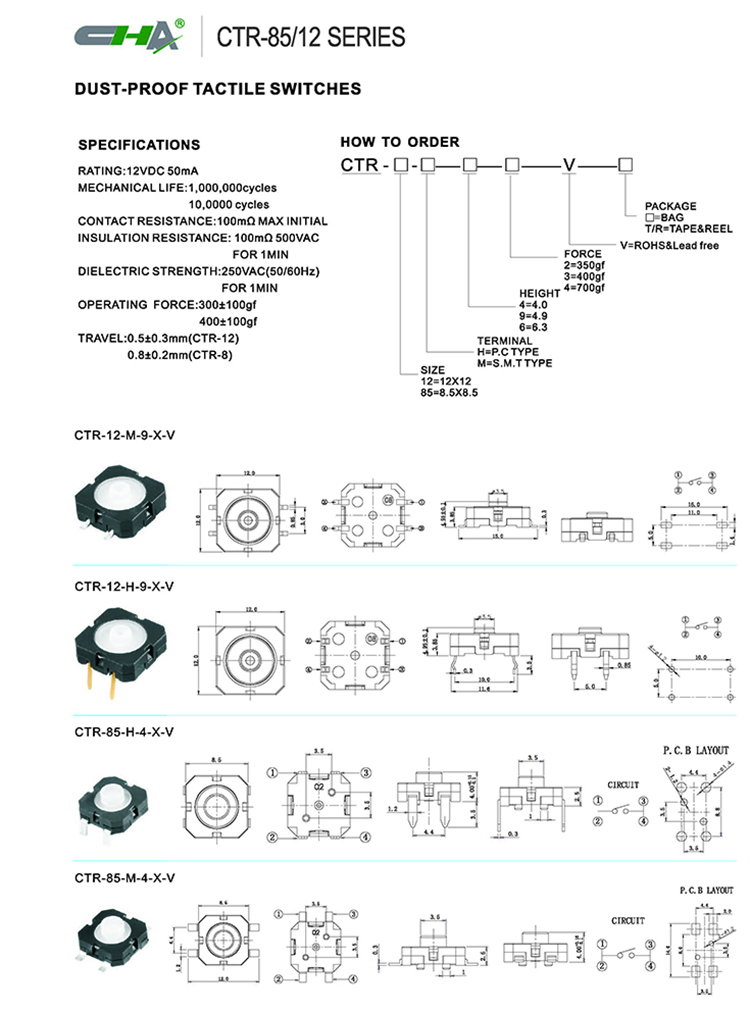

CTR-85 Series tact switch

• Rating:12VDC 50mA Mechanical life:1,000,000 Cycles /10,0000 cycles Contact Resistance: 100mΩ MAX INITIAL Insulation Resistance:100mΩ 500VAC Dielectric strength:250VAC (50/60Hz) FOR 1MIN Operating Force:300±100gf / 400±100gf
