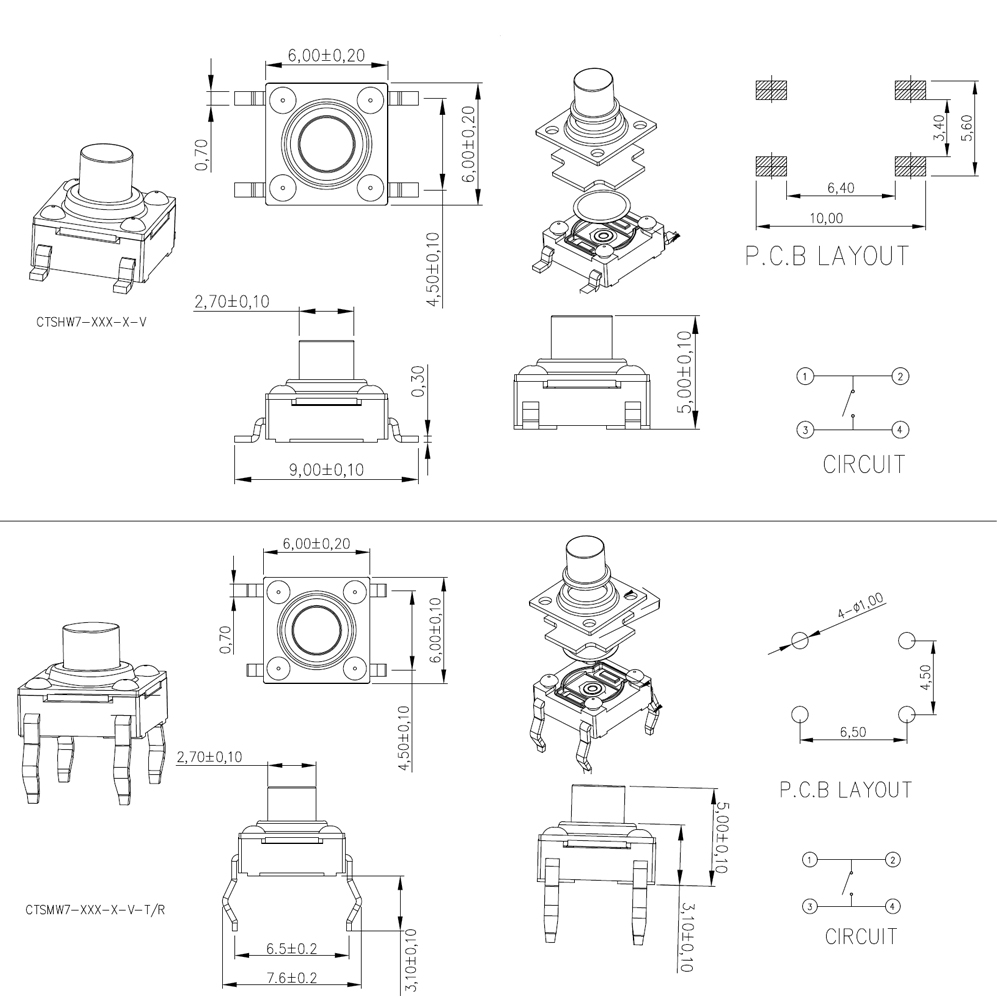

CTS(H.M)W7  series tact switch

CTS(H.M)W7 series tact switch

  • RATING : 12VDC 50mA CONTACT RESISTANCE :100 mΩ max INSULATION RESISTANCE : 100 MΩ 500VAC FOR 1 MIN DIELECTRIC STRENGTH : 250VAC ( 50 / 60HZ ) FOR1MIN OPERATION FORCE : 250 + 30g TRAVEL : 0.3±0.1mm DURABILITY :100,000 CYCLES AT THE FRE

details
