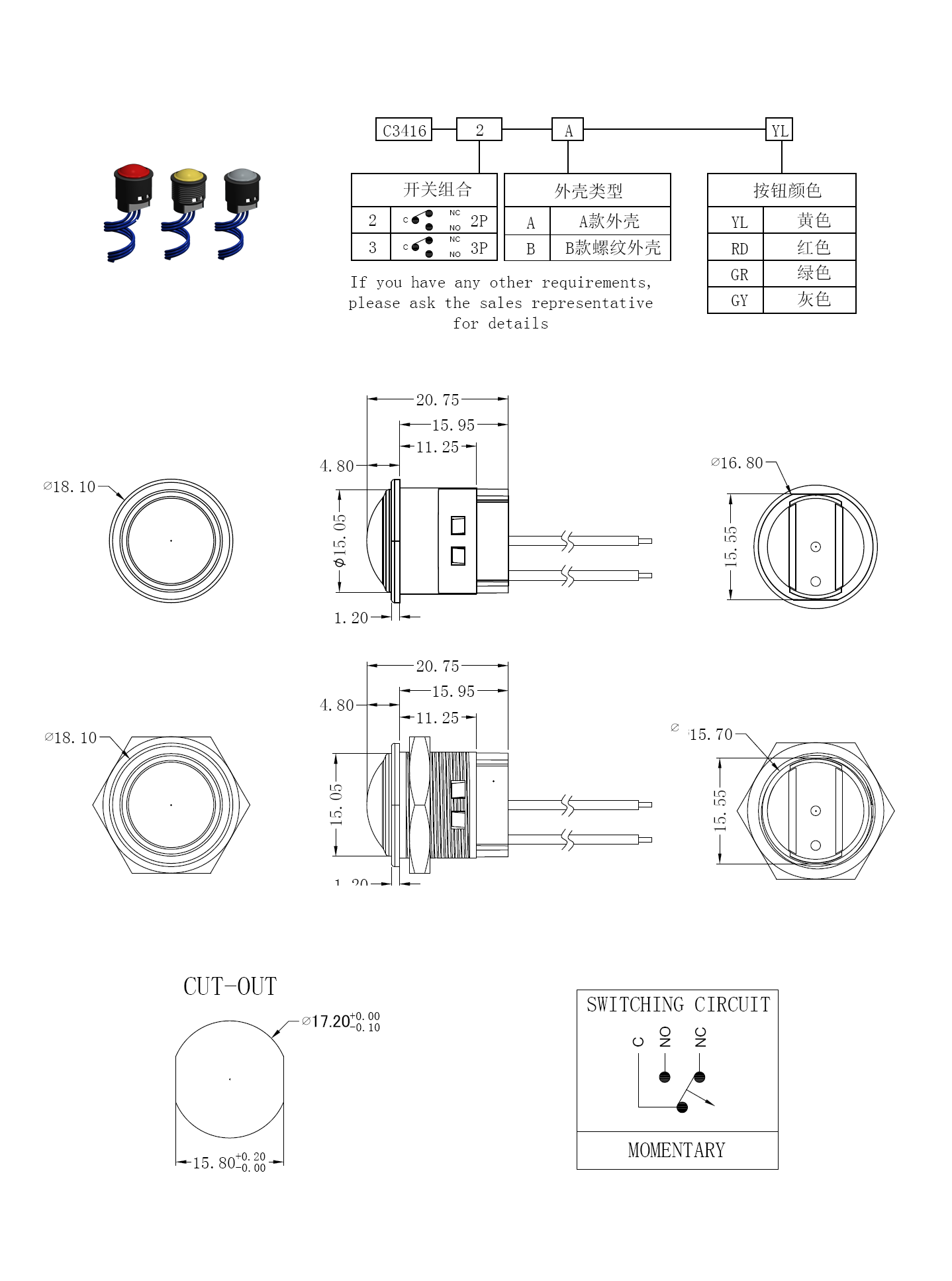

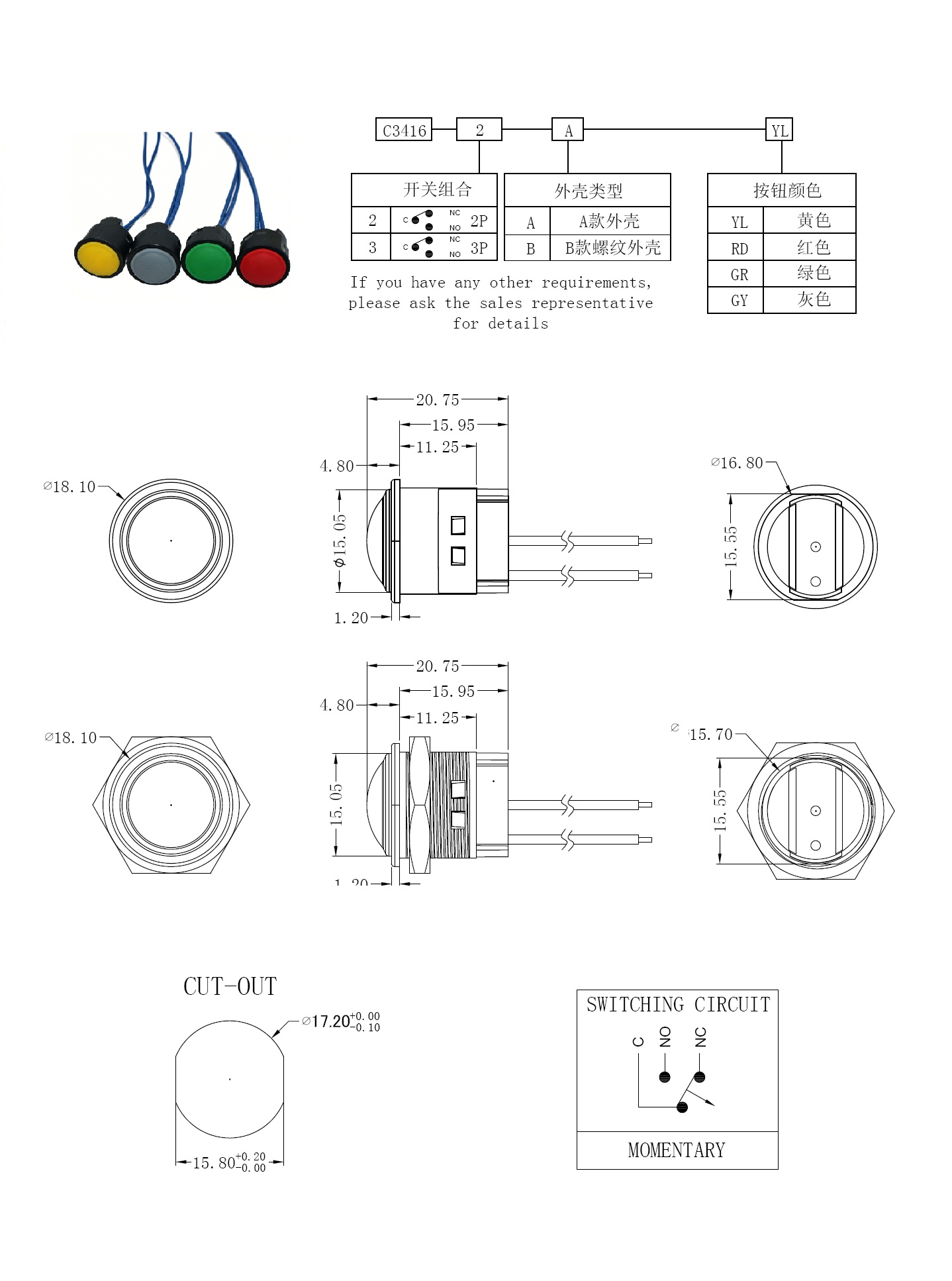

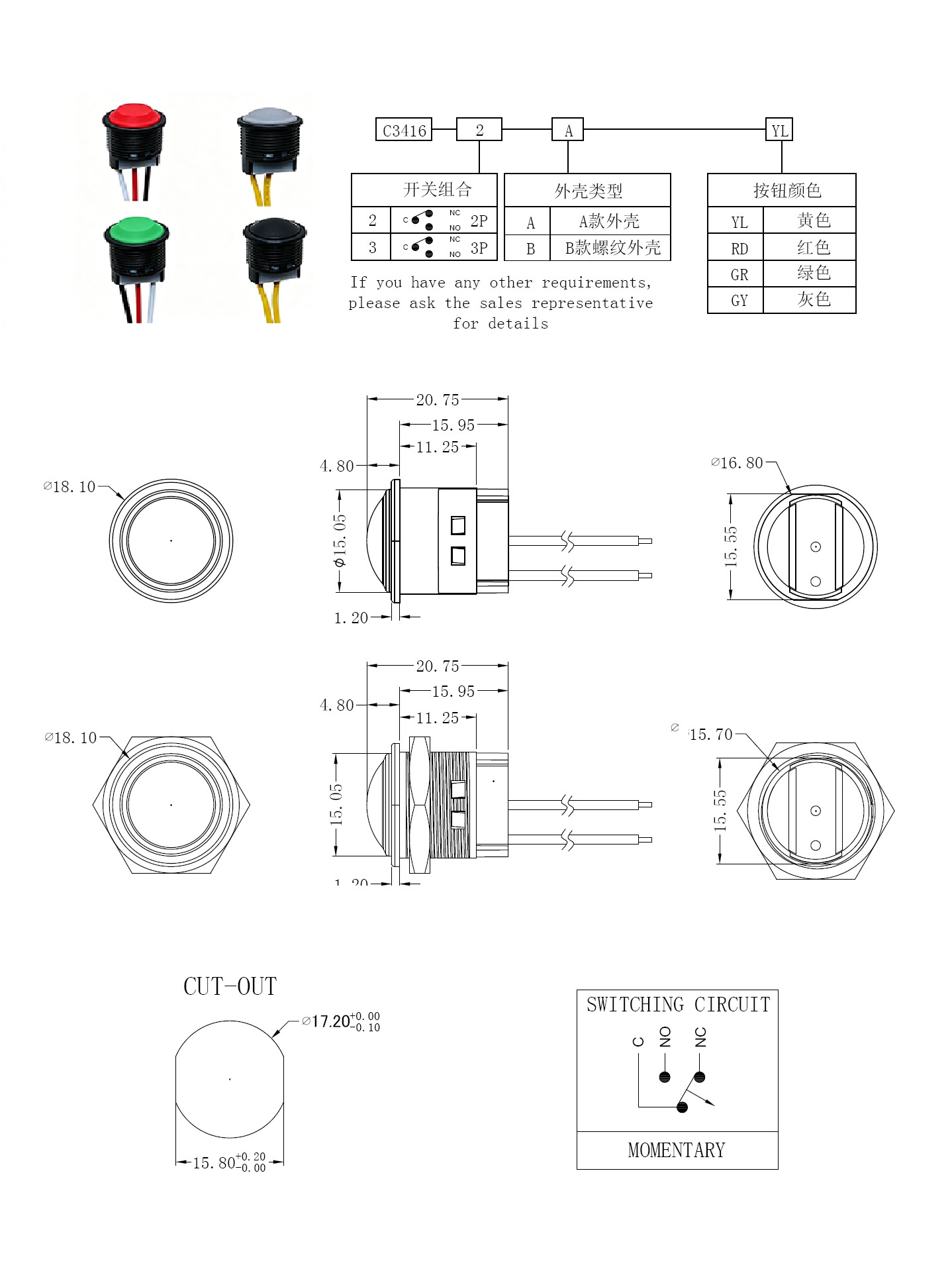

C3416 系列防水按钮开关

• unction:(ON)-OFF Momentary Rating (Resistive load):3A 125V (AC) 3A 24V (DC) Electrical life:1000,000 cycles Mechanical life:1,000,000 cycles Operating Pressure:700±100gf Operating Stroke:0.6±0.2mm Contact Resistance:50mΩ Max Insulation Resi
