C3012 SERIES

带灯开关按钮面积达,正面发光效果均匀造型设计没有光点,搭配不同造型透明盖,不同颜色散光片,让外形变得更加丰富多样,下盖可以插入胶片,印刷,镭雕等图案。

PDF Download
C3012W RGB 三色灯轻触开关

Pole-positions 1P1T,with led,contact rating 12V DC operating force 220±50gf operation life 100000 cycles

PDF Download
C602B-204RL 系列带灯开关

Rating:12 VDC 50mA Insulation Resistance:100 mΩ min(DC 250V) Dielectric strength:250VAC (50/60Hz) FOR 1MIN Contact Resistance: 100 mΩ max Electrical life :100,000 cycles Operating Temperature:-20℃ to +70℃

PDF Download
C603 系列RGB 带灯轻触开关

Rating:12 VDC 50mA Insulation Resistance:100 mΩ min(DC 250V) Dielectric strength:250VAC (50/60Hz) FOR 1MIN Contact Resistance: 100 mΩ max Electrical life :100,000 cycles Operating Temperature:-20℃ to +70℃

PDF Download
C3105-H 带灯轻触开关

额定电流:DC 12V 50mA 接触电阻:100mΩ max 绝缘电阻:100mΩ min 操作力: 450±100克力 寿命: 10,000 cycles / 25,000cycles

PDF Download
C3105-M SERIES 贴片带灯轻触开关

额定电流:DC 12V 50mA 接触电阻:100mΩ max 绝缘电阻:100mΩ min 操作力: 450±100克力 寿命: 10,000 cycles / 25,000cycles

PDF Download
C602C SERIES 带灯轻触开关

Rating: 50mA, DC12V Operating Life: 300,000 cycles Operating Force: 160 ± 50g

PDF Download
C360 SERIES

带灯(Light Emitting Diode, LED)轻触开关 PC版插件(Through hole,TH)或表面贴片(Surface Mount Device,SMD) 多种外形帽盖,可以定制字符,灯色,帽盖颜色

PDF Download
C3103 SERIES 带灯轻触开关

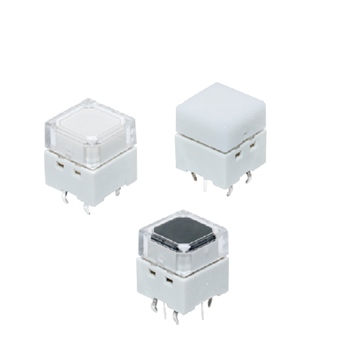

SHORT-TRAVEL KEY SWITCHES C3103键盘开关 Dimension: 15x15mm and 19x19mm Illumination with colored and transparent cover Mechanical life: 1,000,000 cycles High temperature materials (UL94V0) option

PDF Download
C3102 SERIES 带灯轻触开关

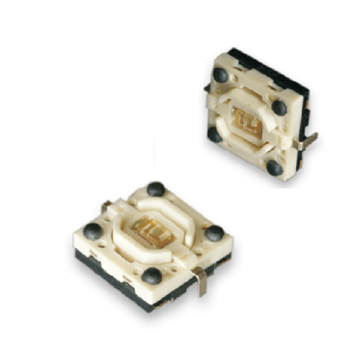

NAVIGATION SWITCHES C3102 触动开关 Illuminated and Water-proof construction Thru-hole and SMT types are available Operation life: 1,000,000 cycles. Contact rating: 50mA, 24VDC Can be combined into a 5-ways Navigation Switch Various options of LED

PDF Download
C3101 SERIES 带灯轻触开关

ILLUMINATED TACT SWITCHES (10) C3101 带灯触动开关 Contact Rating: 50mA,24VDC Electrical Life: 1,000,000 cycles Contact Resistance: 100mΩ max.(initial) Insulation Resistance: 100MΩ min. Dielectric Strength: 500VAC

PDF Download

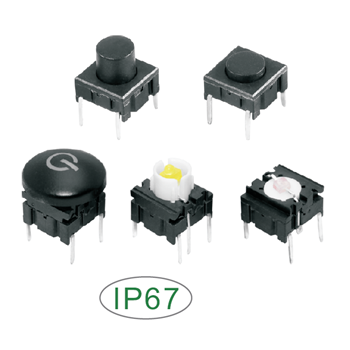

C3009L SERIES IP67防水带灯轻触开关

C3009L系列密封 SMT 轻触开关有外形帽子, 提供了更大的灵活性, 并能针对特定应用的需求进行配置。CHA的 C3009L 是符合 IP67 标准的, 软起动器 5.3mm 高的开关, 其长寿命和耐用性非常适合工业、消费类电子、汽车和远程应用。

PDF Download
25 条记录 1/3 页 下一页  1  2   3
